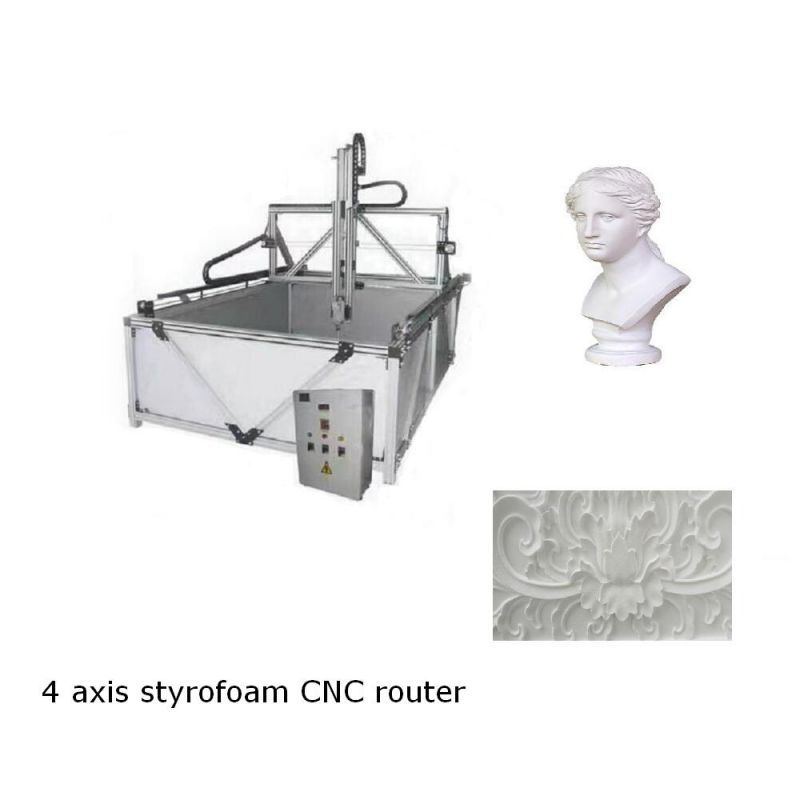

4 axis styrofoam CNC router with extruded aluminium frame

The 4 axis styrofoam cnc router is used for carving eps styrofoam materials which are used in statue,relief,exhibition,decoration lines etc.The router can make graphics on flat surface,also it can make 3D statue on cylinders.

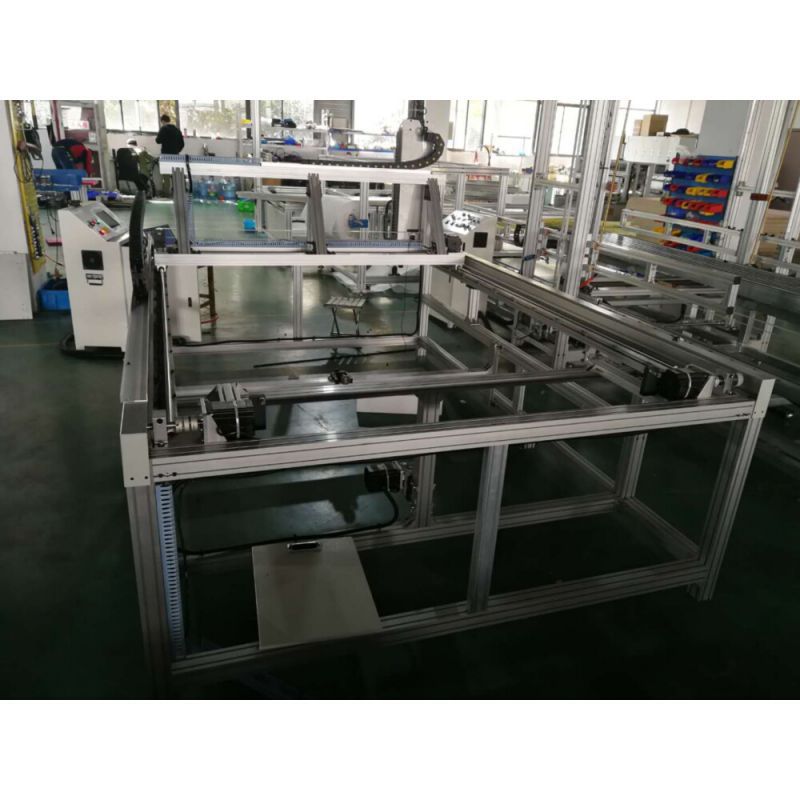

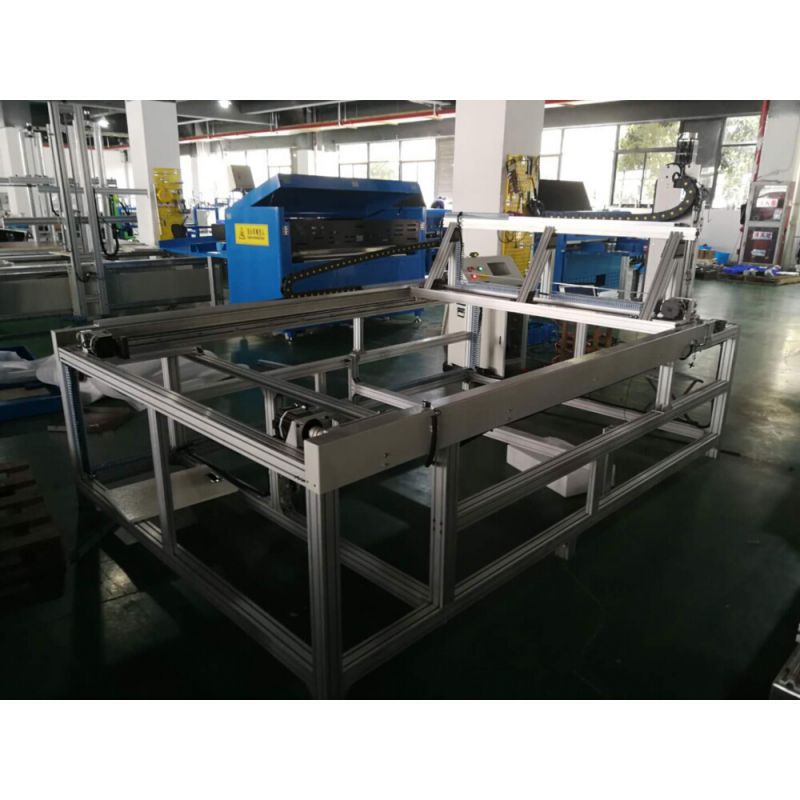

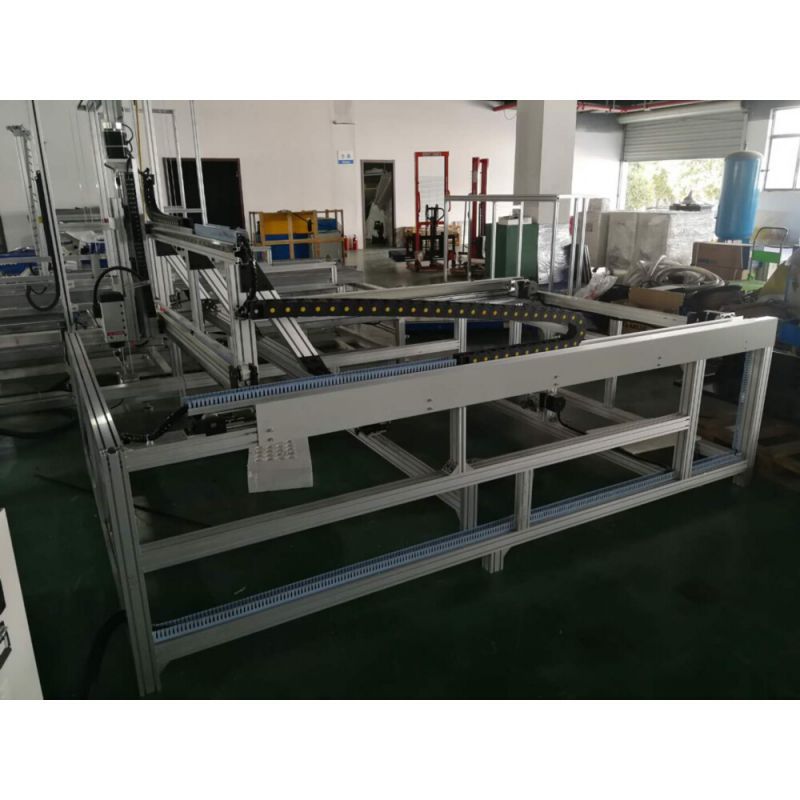

The XY axis is drived by chain and Z axie by ball screw.The machine frame is made up of extruded aluminium which are 60mm diameter.

It is 4 axis styrofoam CNC router which is supported by DeskProto and PlanetCNC software.

Specification

Model No.
CNC300A
Spindle
Power
3.5 kw
REV
18000 rpm
Cooling way
Air cooling
Application size
3D
1000*800 mm
relief
2400*1400 mm
Machine size
3000*1900*1700 mm
Machine weight
400 kg
 Aluminum extrusion diameter
60*60 mm
Precision
                      ± 1mm
Axis
                  X Y Z A
Driving motion
          Chain and ball screw

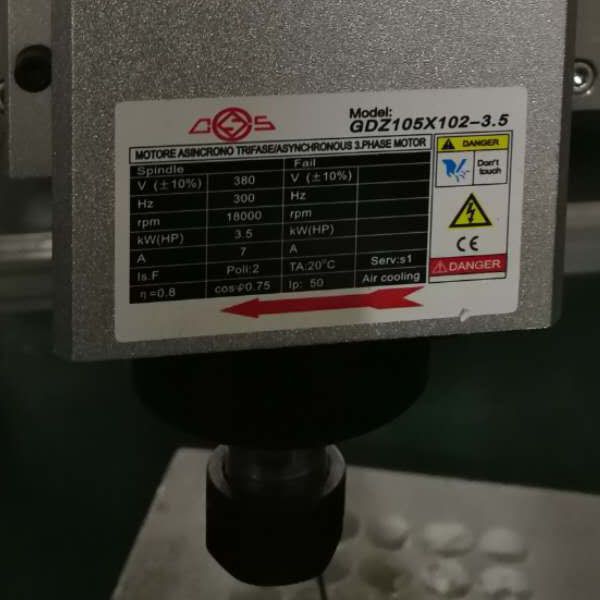

 styrofoam cnc router - spindle

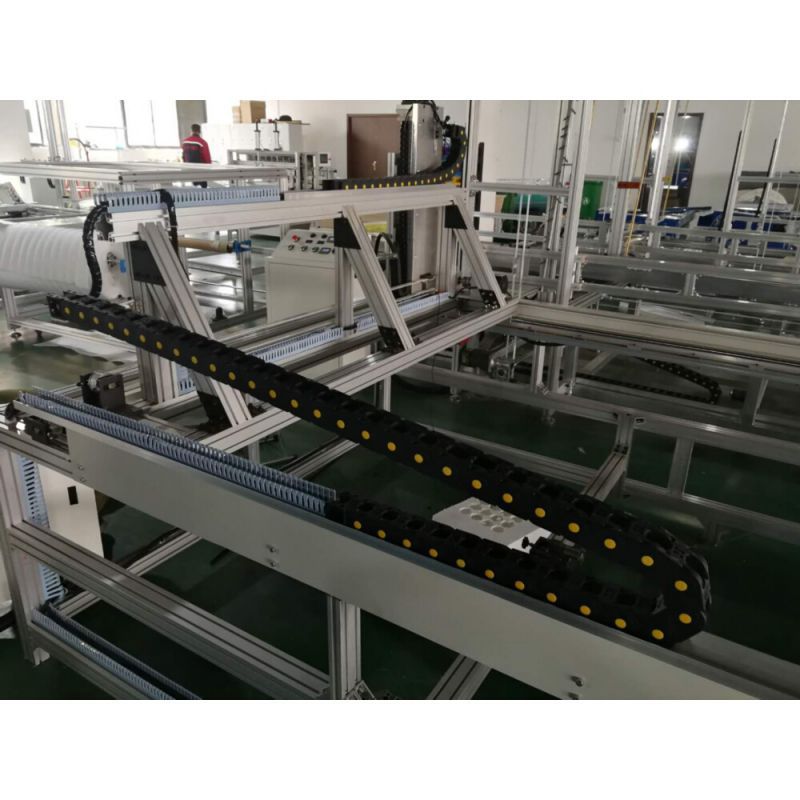

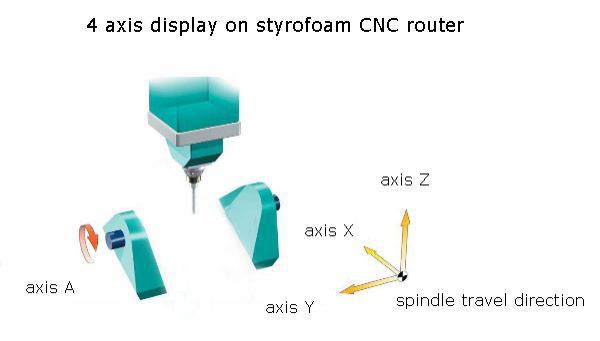

The 4 axis styrofoam cnc router is motioned with axis XYZA,it is four axis in coordination with our software,it means that the axie A can work with axis XYZ at same time.

cnc foam router - 4 axis graphics

Drawing and control software

DESKPROTO and PLANETCNC software

DeskProto is a 3D CAM program (CAM = Computer Aided Manufacturing). It can import STL files from any 3D CAD program, calculate CNC toolpathsand then write NC program files for any brand of CNC milling machine,3-axis, 4-axis or 5-axis.

For PlanetCNC,users can work with standard g-code, users can also import DXF files, PLT/HPGL files, Gerber files, NC Drill (Excellon) files for drilling holes, images… These files are all converted to g-code and can be used for cutting. There is also special Python importer for advanced programs.G-code can also be exported to DXF or CSV file.

Application

cnc foam router

Youtube Video

4 axis styrofoam cnc router  video

Prev: Custom foam groove machine,rotational pre-shaped hot wire cutter for package
Next: CNC hot wire machine with extruded aluminium frame for 2D models
