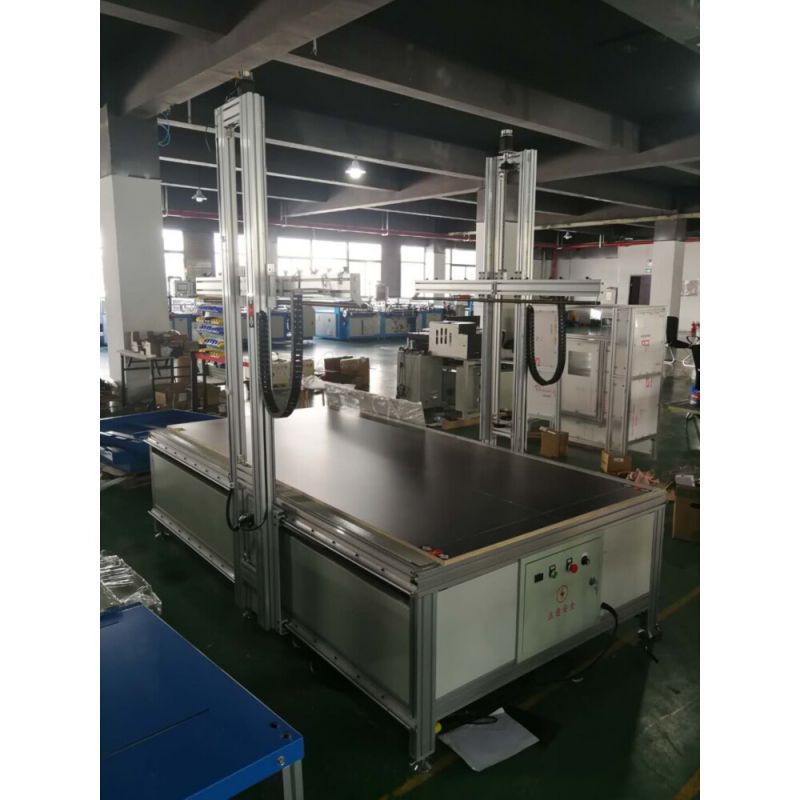

multiwire 2D cutter

  • CNC hot wire machine with extruded aluminium frame for 2D models
  • CNC hot wire machine with extruded aluminium frame for 2D models
  • CNC hot wire machine with extruded aluminium frame for 2D models
  • CNC hot wire machine with extruded aluminium frame for 2D models
  • CNC hot wire machine with extruded aluminium frame for 2D models
  • CNC hot wire machine with extruded aluminium frame for 2D models
  • CNC hot wire machine with extruded aluminium frame for 2D models
CNC hot wire machine with extruded aluminium frame for 2D models CNC hot wire machine with extruded aluminium frame for 2D models CNC hot wire machine with extruded aluminium frame for 2D models CNC hot wire machine with extruded aluminium frame for 2D models CNC hot wire machine with extruded aluminium frame for 2D models CNC hot wire machine with extruded aluminium frame for 2D models CNC hot wire machine with extruded aluminium frame for 2D models

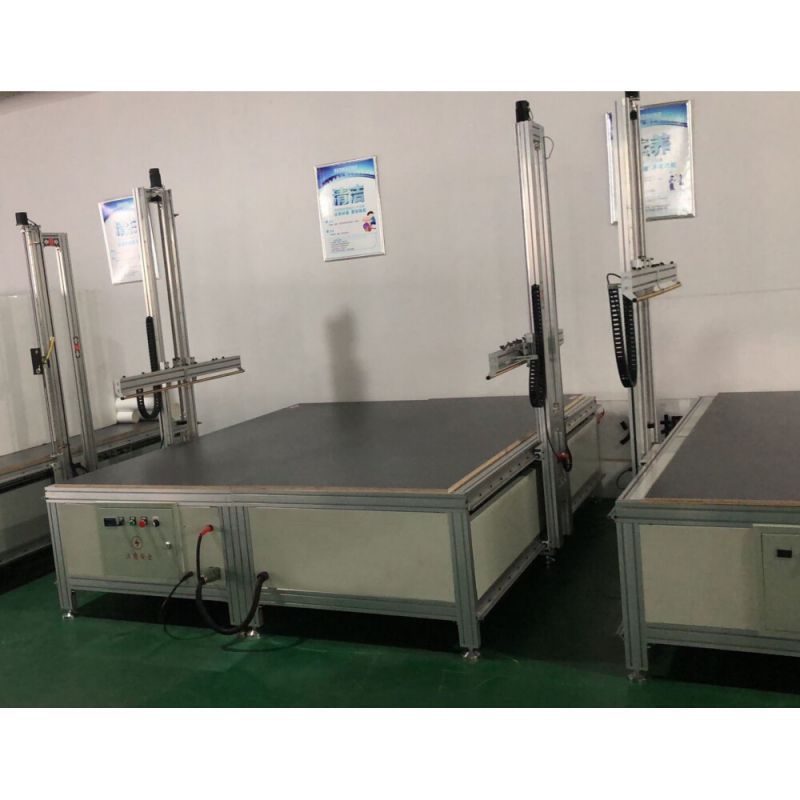

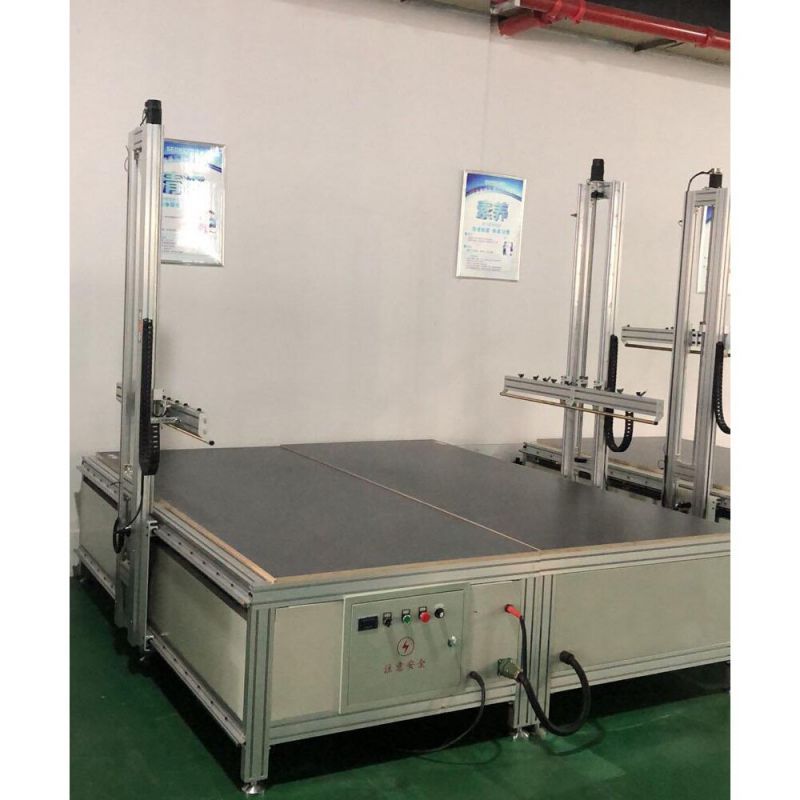

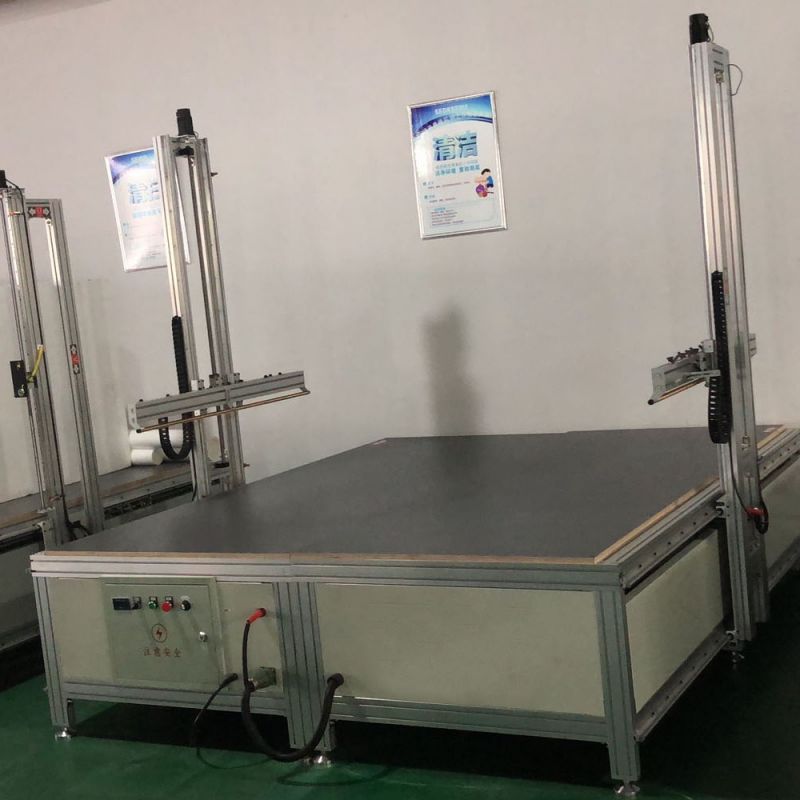

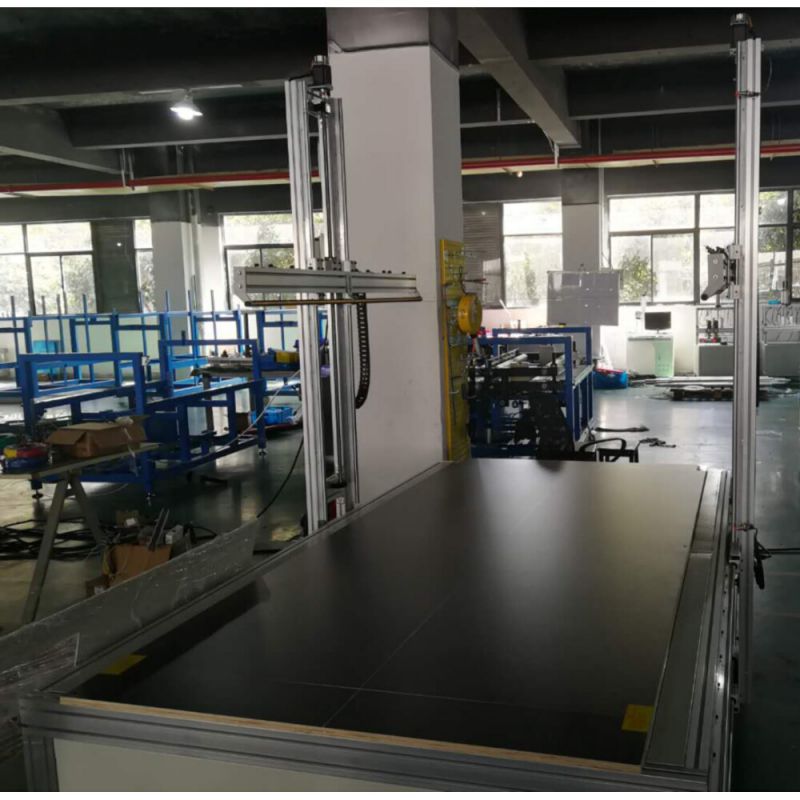

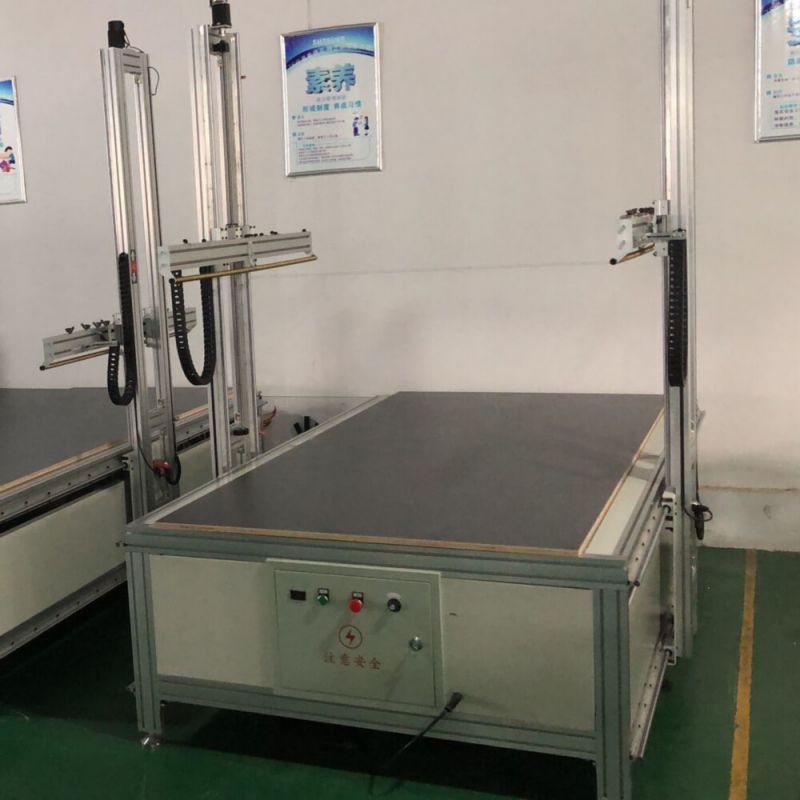

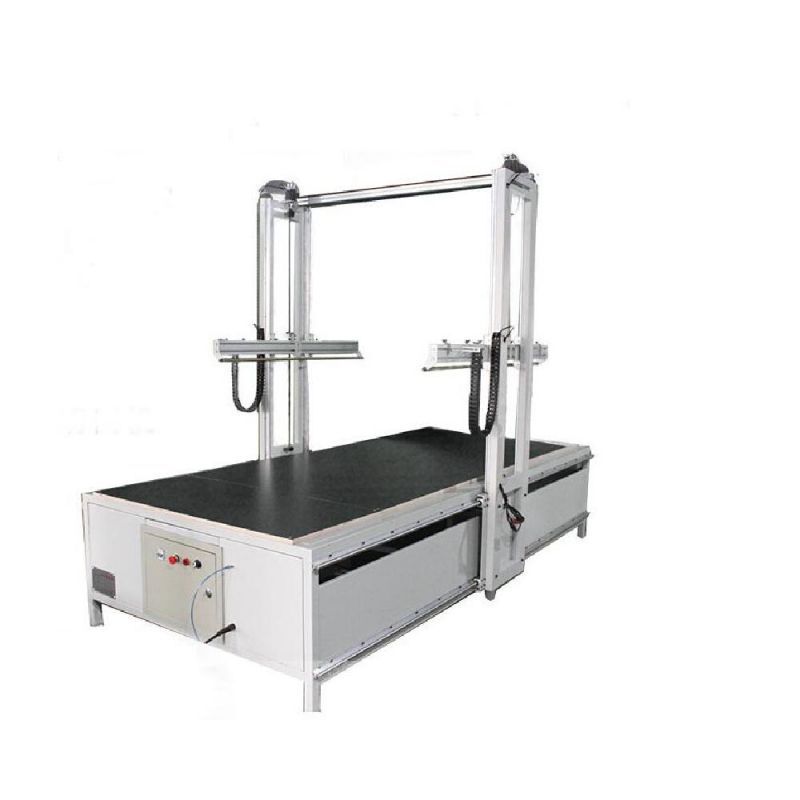

CNC hot wire machine with extruded aluminium frame for 2D models

The CNC hot wire machine is for cutting two dimensional shapes on eps styrofoam block.The advantage of this CNC styrofoam cutter is that it takes multiple hot wires on the horizontal cutting tools,so it can work on cutting with each wire for bulk qty.

1) CNC hot wire machine takes precision ball screw transmission.it is more precise than industrial belt.

2) Hot wire temperature can be adjustable.

3) Copper materials bar for holding hot wires can be more heat conduction.

4) Devfoam drawing software is available is your USB flash disk.

5) Extruded aluminium materials frame.

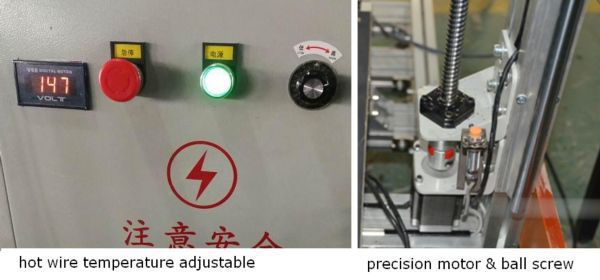

cutting temprature of hot wire cnc foam cutting machine

Our CNC foam cutting machine support AutoCAD,CorelDRAW,AI etc software,the DWG,DXF,PLT,JPG format files can be imported,the cutting routine can be automatically generated without programming. and automatically suit the cutting objects.We save the DevFoam software in the USB flash disk,customer can install it in your computer and let us know your computer code,we will permit your usage of devfoam software with our code.

devfoam drawing software

Specification

Model No.
Cutting Length (mm)
Wire Length (mm)
Cutting Height (mm)
Machine size (mm)
C100606
1000
600
650
1200*700*1000
C151306
1500
1300
650
2000*700*1000
C211306
2100
1300
650
2400*1600*1600
C151313
1500
1300
1300
2000*1600*1600
C211313
2100
1300
1300
2400*1600*1600
C301313
3000
1300
1300
3200*1600*1600
C152313
1500
2300
1300
2000*2500*1600
C242313
2400
2300
1300
2600*2500*1600
C302313
3000
2300
1300
3200*2500*1600

Application

hot wire 2D cutting models by cnc foam cutter

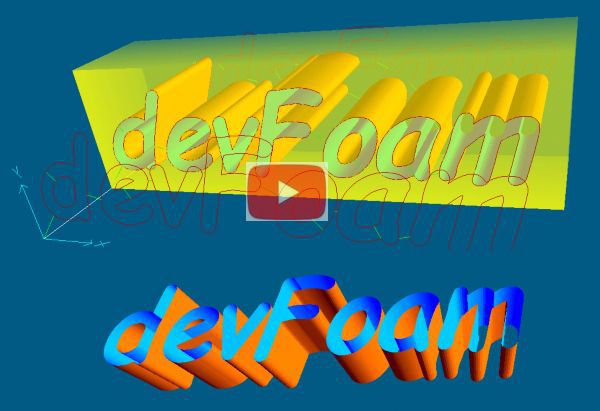

Devfoam teaching on Youtube Video

Devfoam video teaching course for hot wire cnc foam cutter on Youtube

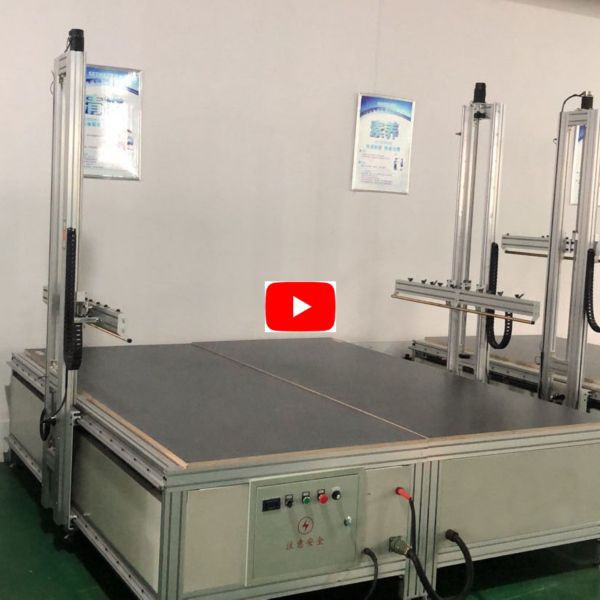

Machine working on Youtube Video

cnc hot wire machine
