Bandsaw Cutter

Bandsaw Cutter for Slicing EPE Thickness into Layers

Item No.: CO4249487
Send Enquiry

How to slice along EPE thickness?

Q: How you can slice the semi-rigid EPE foam sheet into layers?

A: By bandsaw.But only our bandsaw can do the work.

Cutting Problem in the market

Btw,there are many bandsaw machine in the market,but the bandsaw machines for wood or mineral wool are not workable for slicing along EPE thickness.Cause it is too much size error...

Why us?

Our EPE bandsaw Cutter cuts with good precision,almost no size error during slicing.

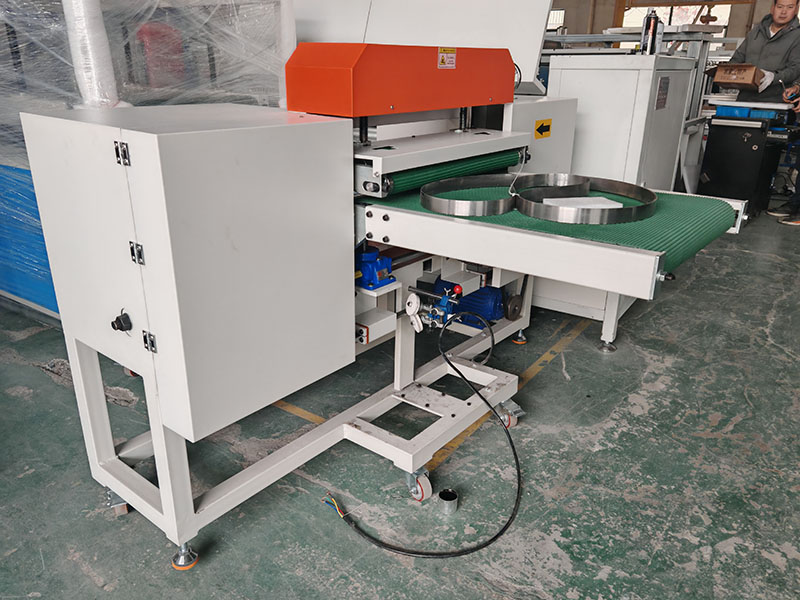

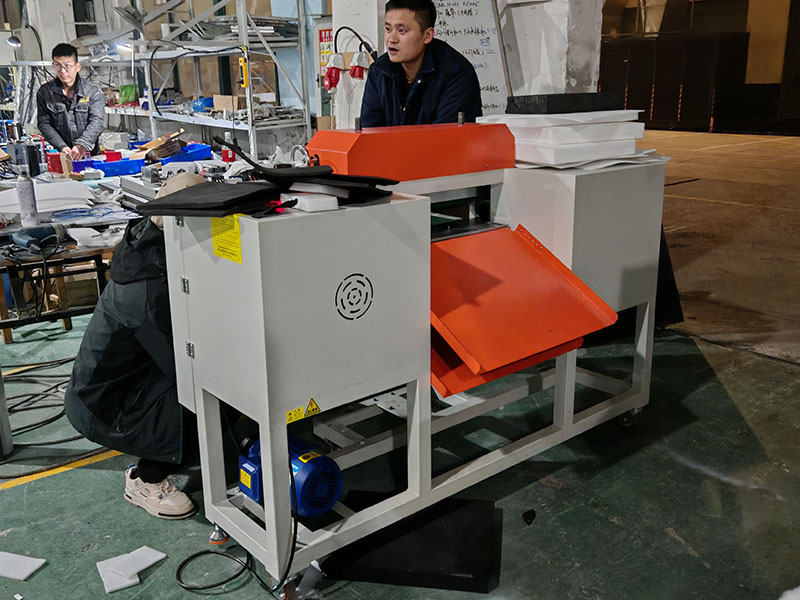

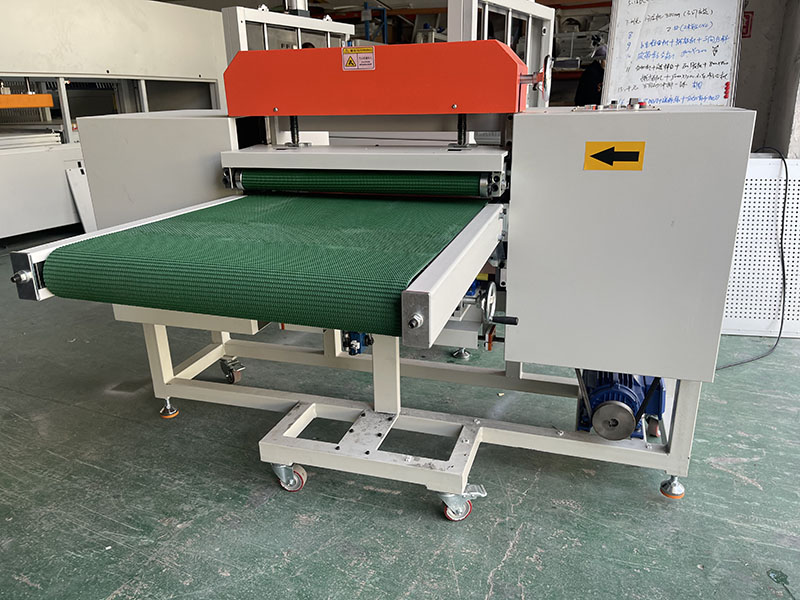

The circular bandsaw rotates in the machine to cut,the cutting saw is horizontally motions on the table to slice the EPE foam thickness into thin layers.

The belts up and down can convey as well as to press the EPE foam at a position when cutting,we design it like this to make a precision cut.

The feeding thickness and the cutting thickness are adjustable by the hand rotating wheels.

Parameter

Machine Power	2.7kw	Machine Weight	450kg
Feeding Width	600mm	Feeding Thickness	Max 150mm
Up Slicing Thickness	3mm - 100mm	Bandsaw Position	Adjustable
Down Slicing Thickness	1mm - 50mm	Feeding Thickness	Adjustable
Machine Size	180014001200mm	Power Supply	380V at default
