hot wire cnc foam cutting machine with turntable for 3D models hot wire cnc foam cutting machine with turntable for 3D models hot wire cnc foam cutting machine with turntable for 3D models hot wire cnc foam cutting machine with turntable for 3D models hot wire cnc foam cutting machine with turntable for 3D models hot wire cnc foam cutting machine with turntable for 3D models

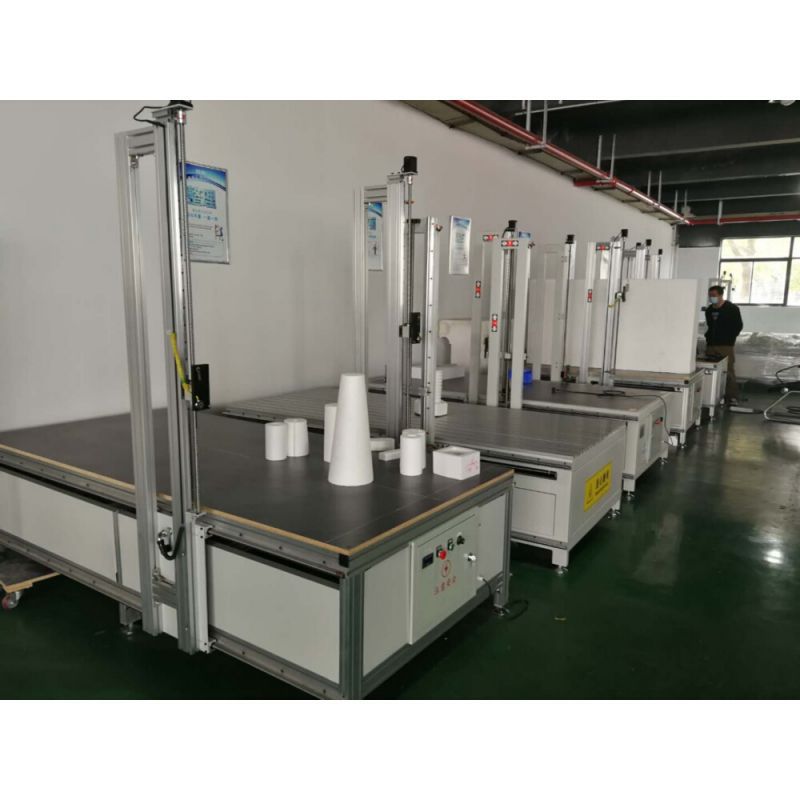

hot wire cnc foam cutting machine with turntable for 3D models

CNC foam cutting machine with turntable is with single hot wire for cutting 3D,2D,block and tapered foam shapes.

1) Hot wire temperature adjustable manually.

2) Hot wire tensioning and stocking roller.

3) CNC foam cutting machine frame is aluminium extrusions materials.

4) Ball screw transmission is with good precision than industrial belt.

5) Devfoam drawing software. Cutting software in computer or hand controller are optional.

6) Independent axis control.

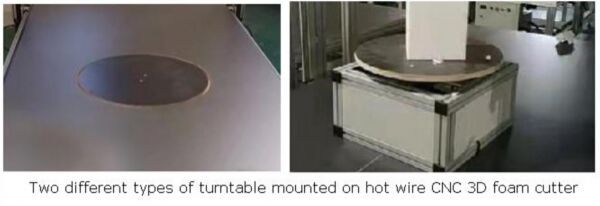

Built-in and split turntable options are available

 turntable on hot wire foam cutter

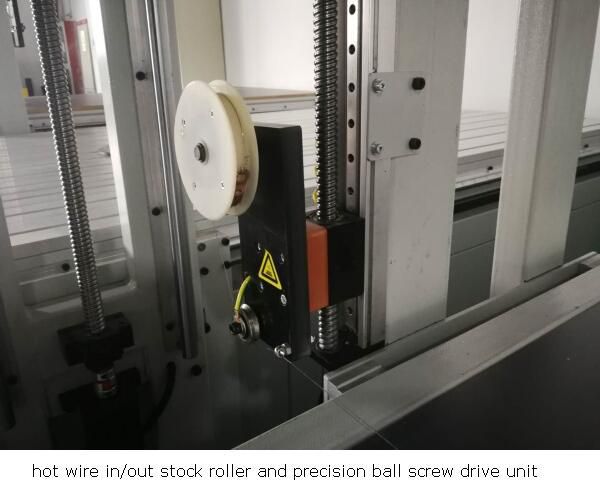

ball screw and hot wire roller of cnc foam cutter

Our CNC foam cutting machine support AutoCAD,CorelDRAW,AI etc software,the DWG,DXF,PLT,JPG format files can be imported,the cutting routine can be automatically generated without programming. and automatically suit the cutting objects.We save the DevFoam software in the USB flash disk and customer can install it in your computer and let us know your computer code,we will permit your usage of devfoam software with our code.

CNC drawing and cutting software

Specification

Model No.
Cutting Length (mm)
Wire Length (mm)
Cutting Height (mm)
Machine size (mm)
C100606
1000
600
650
1200*700*1000
C151306
1500
1300
650
2000*700*1000
C211306
2100
1300
650
2400*1600*1600
C151313
1500
1300
1300
2000*1600*1600
C211313
2100
1300
1300
2400*1600*1600
C301313
3000
1300
1300
3200*1600*1600
C152313
1500
2300
1300
2000*2500*1600
C242313
2400
2300
1300
2600*2500*1600
C302313
3000
2300
1300
3200*2500*1600

Application display

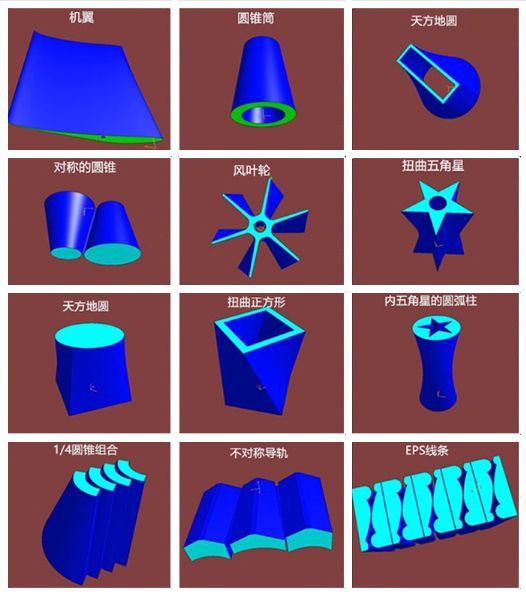

styrofoam cutting models by cnc 3D cutter

Devfoam Teaching on Youtube Video

devfoam teaching course for cnc hot wire cutter on Youtube video

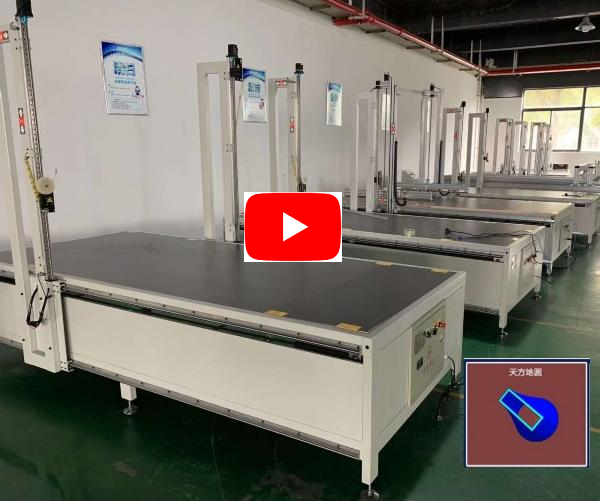

Machine works on 4D models on Youtube Video

hot wire cnc 4D cutting machine
