China CNC Foam Cutting Machine Supplier

multiwire block cutter

  • Full automatic and continous eps cutting line with oscillating hot wires
  • Full automatic and continous eps cutting line with oscillating hot wires
  • Full automatic and continous eps cutting line with oscillating hot wires
  • Full automatic and continous eps cutting line with oscillating hot wires
  • Full automatic and continous eps cutting line with oscillating hot wires
Full automatic and continous eps cutting line with oscillating hot wires Full automatic and continous eps cutting line with oscillating hot wires Full automatic and continous eps cutting line with oscillating hot wires Full automatic and continous eps cutting line with oscillating hot wires Full automatic and continous eps cutting line with oscillating hot wires

Full automatic and continous eps cutting line with oscillating hot wires

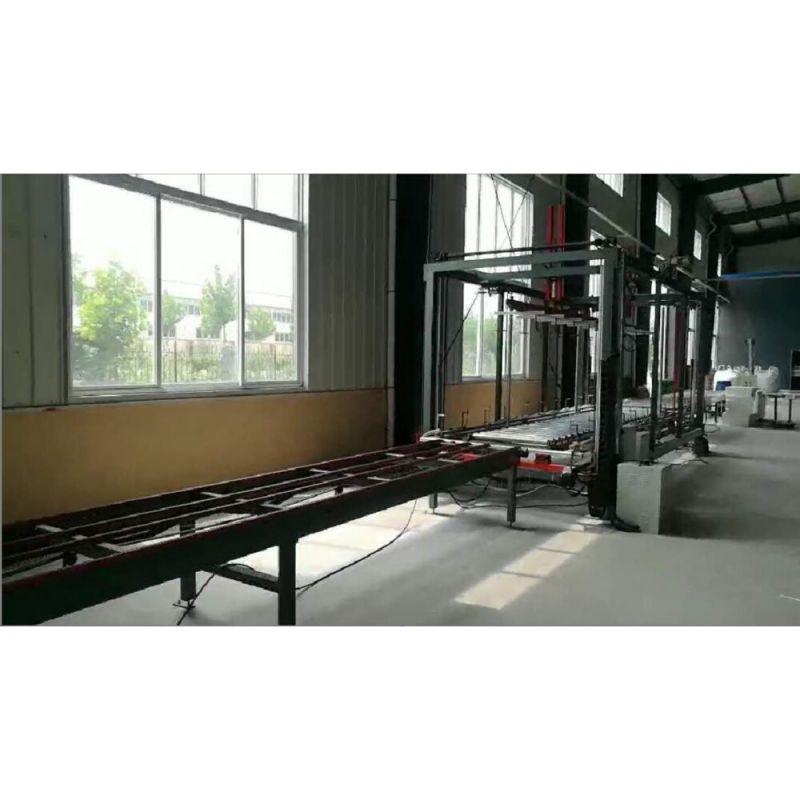

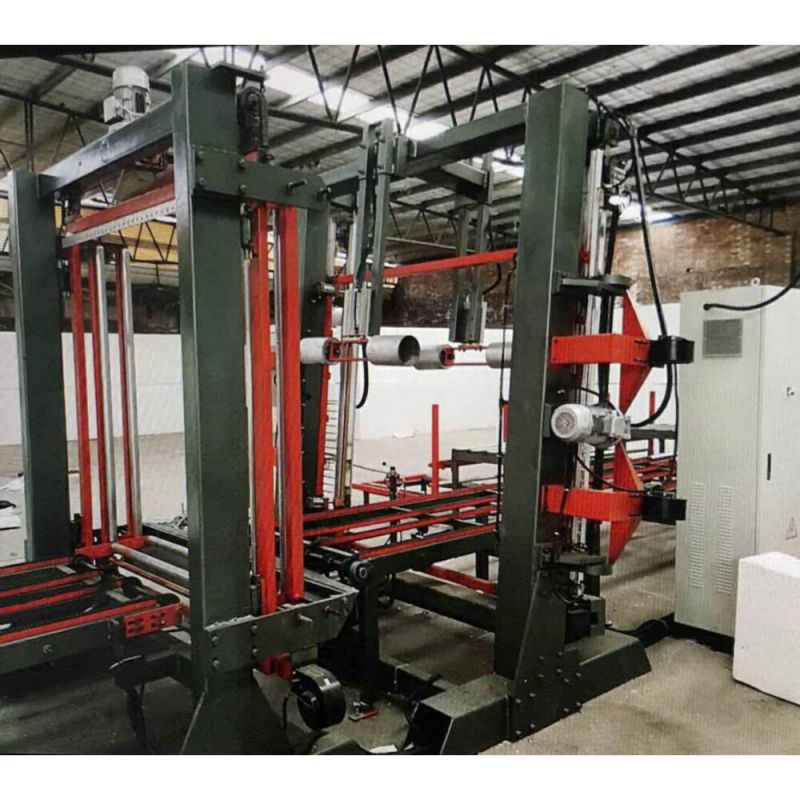

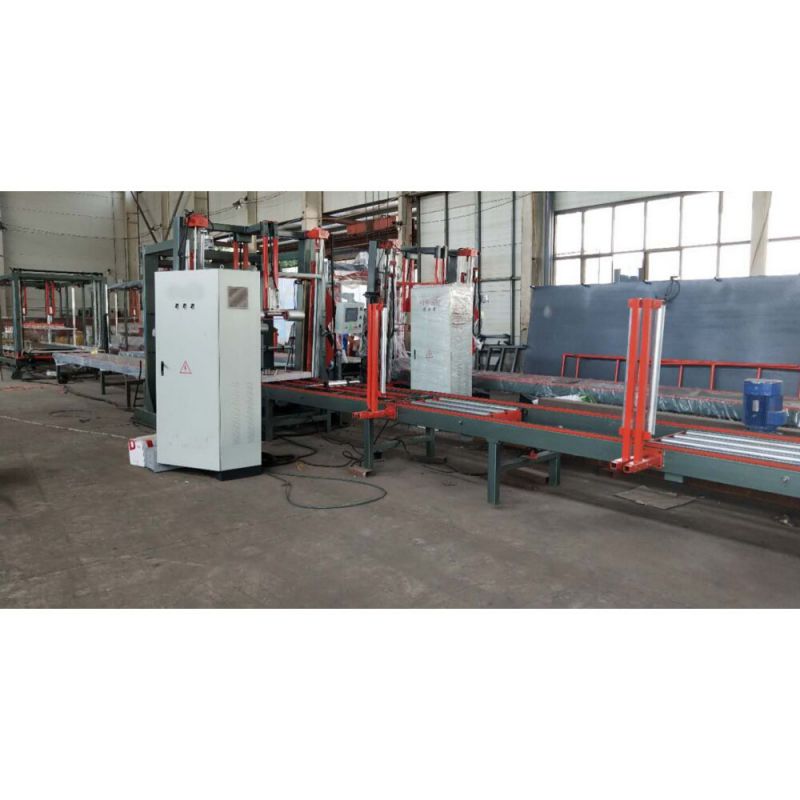

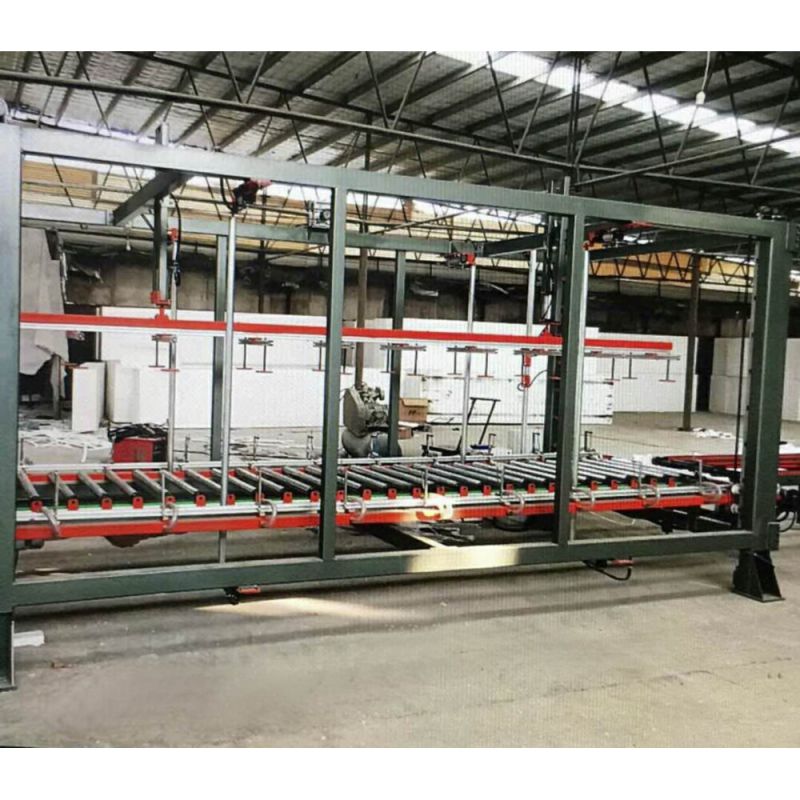

The full automatic eps cutting line with hot wire oscillation is full automatic and continous working on cutting eps blocks,it is with high efficiency,automatic wires setting,automatic feeding with turnover device,automatic cutting and automatic packing,we can even install the foam triming recycling unit on the machine line.

The eps cutting line can work with good capacity over 60m³/h.

It can cut eps styrofoam insulation blocks,propor non flammable eps block,graphite polystyrene blocks etc

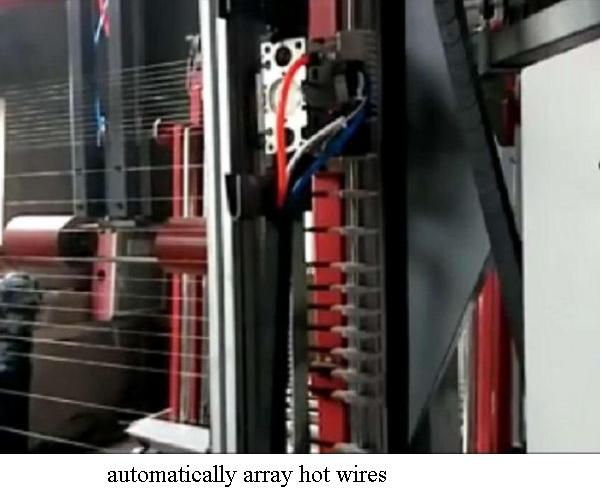

automatic eps cutting line - automatically array wires

Items
Unit
PSC/L2000
PSC/L4000
PSC/L6000
PSC/L8000
Cutting Block application

Length
mm
2000
2000-4120
2000-6120
2000-8160
Width
mm
1000-1300
1000-1300
1000-1300
1000-1300
Height
mm
500-1260
500-1260
500-1260
500-1260
Mini  Cutting Thickness
mm
10
10
10
10
Cutting Density
Kg/m
4-40
4-40
4-40
4-40
Cutting Speed
m/min
0-5
0-5
0-5
0-5
Wires  Setting

Horizontal
pcs
50
50
50
50
Vertical
pcs
20
20
20
20
Sectional
pcs
20
20
20
20
Material and Diameter of Hot wire
mm
0.4, G20Ni80
Voltage
V
380V,50Hz
Total Installation Power
KW
36.4-38.4
Transformer Power
KW
30
Machine Weight
kg
3500-4000 customized

 Youtube Video

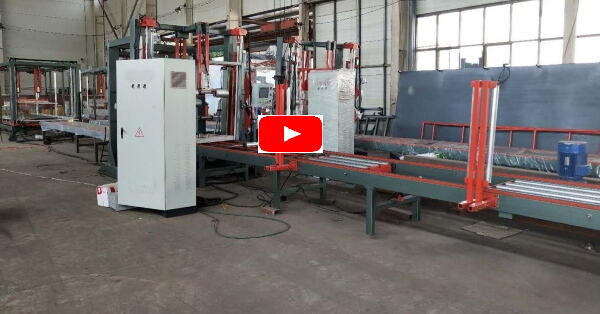

eps cutting machine line from China

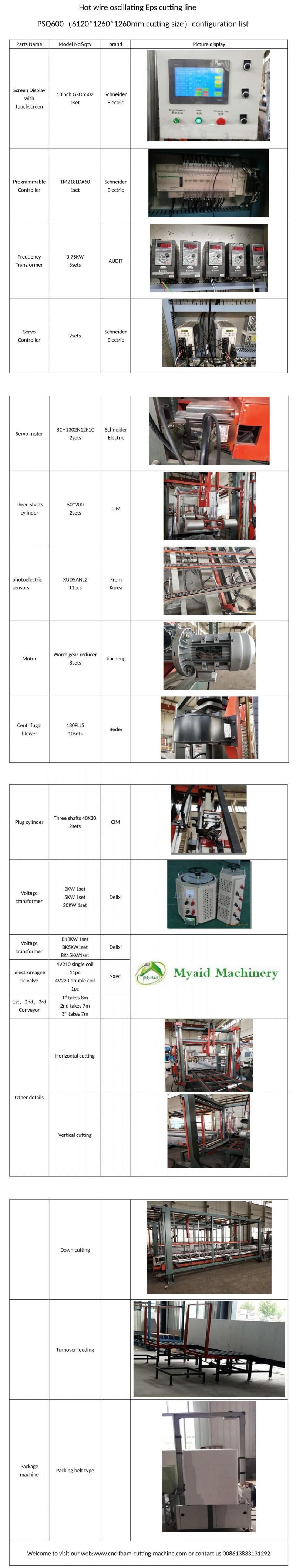

Parts Configuration List

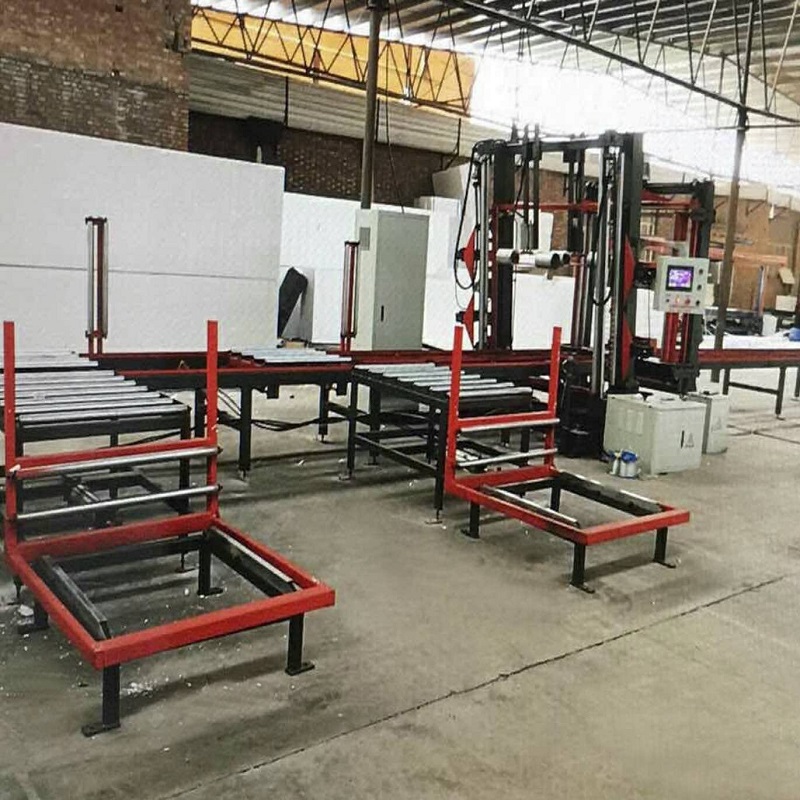

styrofoam cutting line
