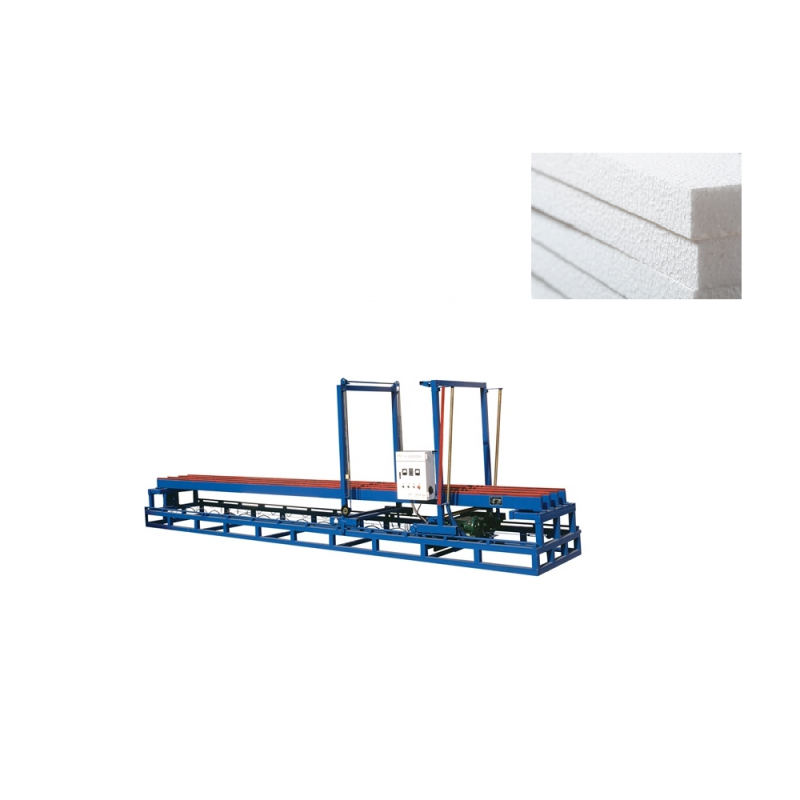

  • foam cutting machine,foam slicing machine with simple design
  • foam cutting machine,foam slicing machine with simple design
foam cutting machine,foam slicing machine with simple design foam cutting machine,foam slicing machine with simple design

foam cutting machine,foam slicing machine with simple design

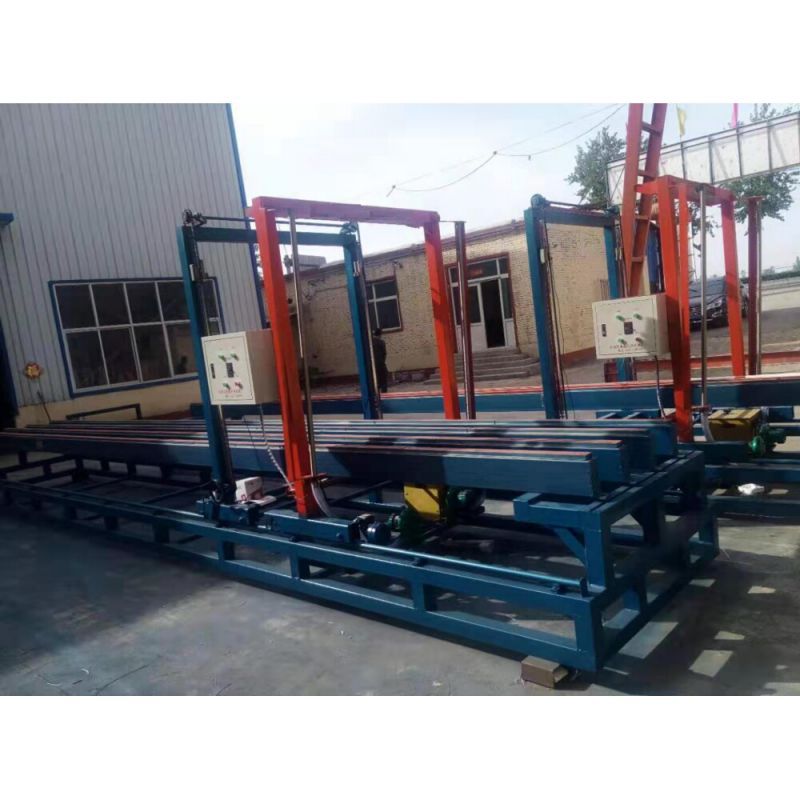

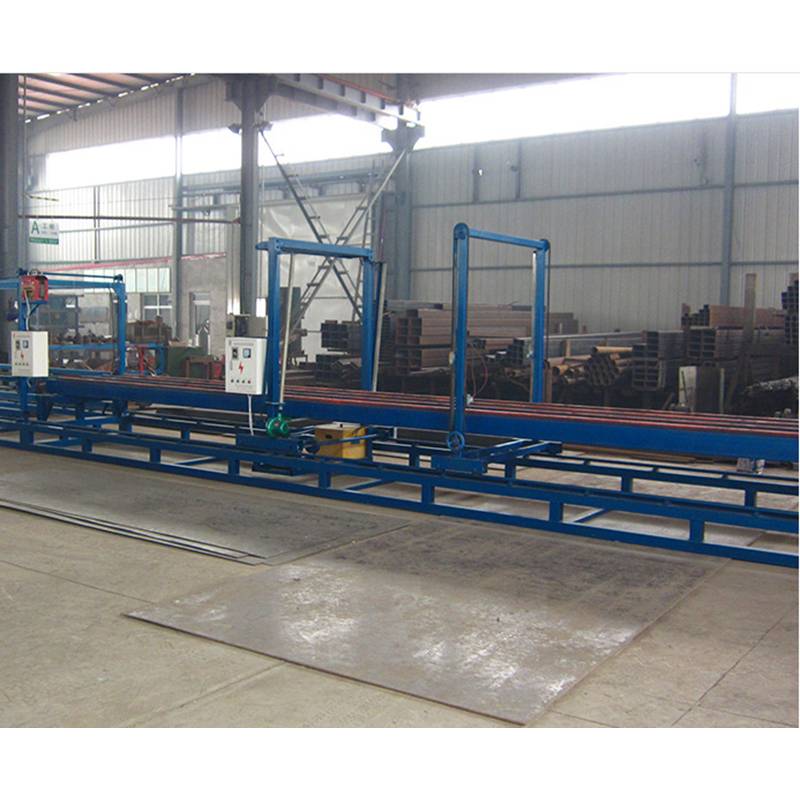

The foam cutting machine takes square steel tube as the frame which is strong in carrying high weight of eps foam blocks and it is important to the precision of cutting.

Stepper motor and reducer assembly on the hot wire cutting machine can give enough power to drive the machine working.

Hot wires are placed with different direction to make the foam cutting machine multi functional.

Voltage transformer are with different shifts for adjust the temperature of hot wires.

Specification

Model No.
PSQ 200
PSQ 300
PSQ 400

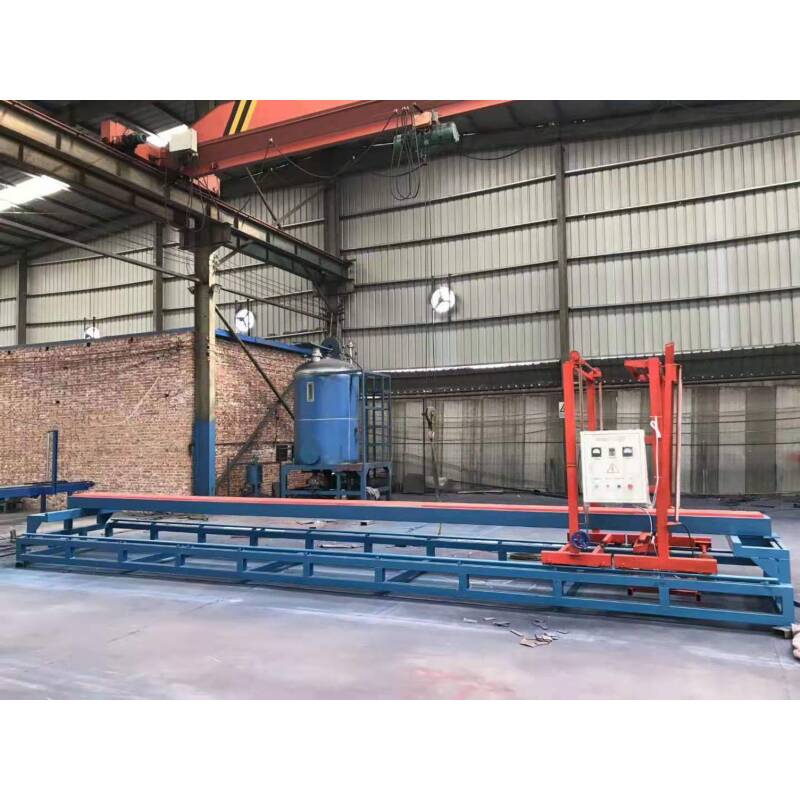

PSQ 600
PSQ800
Cutting Size(mm)
2000x1300x1000
3000x1250x1250
4000x1250x1250
6000x1250x1250
8000x1250x1250
Transformer Capacity
10kVA
10kVA
10kVA
10kVA
10kVA
Total Power
11.55kw
11.55kw
11.55kw
11.55kw
11.55kw
Dimension
(mm)
3800x1900x2480
5800x1900x2480
6800x1900x2480
8800x1900x2480
10800x1900x2480
Weight
1000kg
1200kg
1400kg
1800kg
2200kg

application of foam cutting machine

The foam cutting machine takes hot wires to cut molded foam insulation block into small blocks.The hot wires are multiply mounted horizontally,vertically on the frame.And one down cutting wire is mounted independentlly on another portable frame.It is designed for cutting the foam insulation block in three different directions.You can also use the machine as foam slicing machine only with the multiple horizontal wires,so that it can slice the eps foam block on the long side.

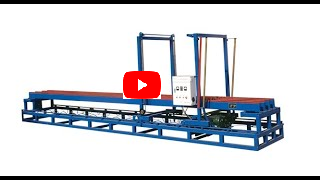

Youtube Video

eps foam cutting machine
