heavy duty CNC hot wire cutter machine with oscillating wires for 2D models

The cnc hot wire cutter machine work with table travel horizontally and hot wires travel vertically to make two dimensional cutting routine.The multi wires position on the cutting wire tools.

Cause the wire tools can be loaded with multiple wires,so the hot wire cutter machine can work with many cutting models in application at same time,each wire with one pc of model.The capacity can be increased a lot than single wire cutter.

The hot wire cutter uses ball screw which is equiped on the vertical transmission,it is generally known that ball screw can be better precision than belt transmission in motion.

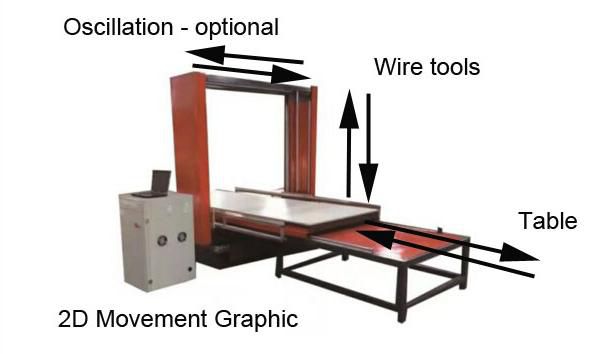

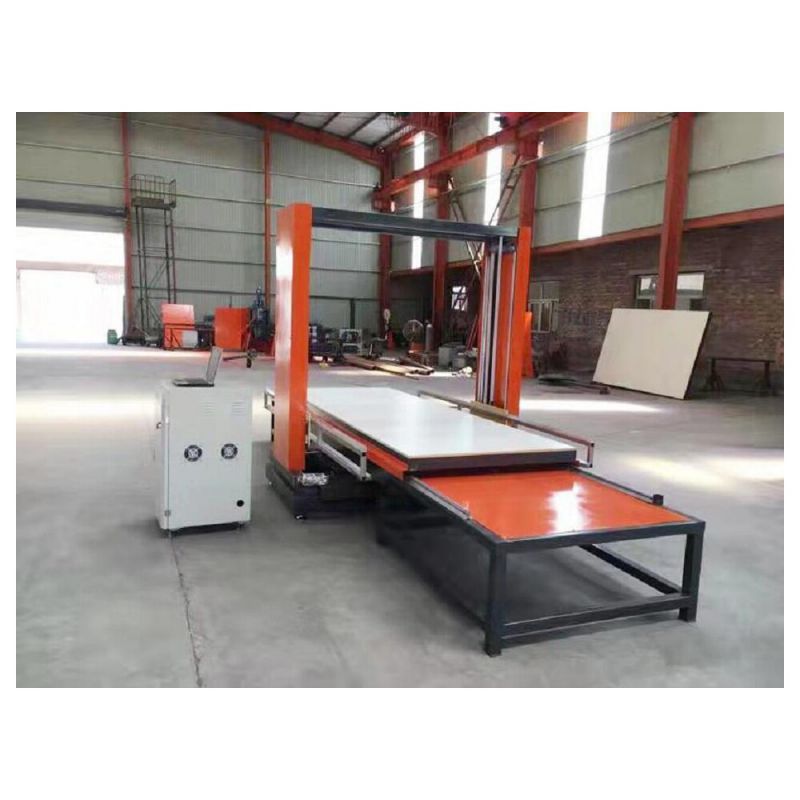

graphic for cnc 2D foam cutting unit

One sole feature on our hot wire cutter is that the hot wire and its tooling can oscillate when travelling.Simply,the hot wires shake when moving forward and backward.We design the oscillating hot wire,cause it can be stronger in cutting some harder materials like thermossetting foam,non flammable eps foam blocks.The feature is optional,pls refer to it before making order.

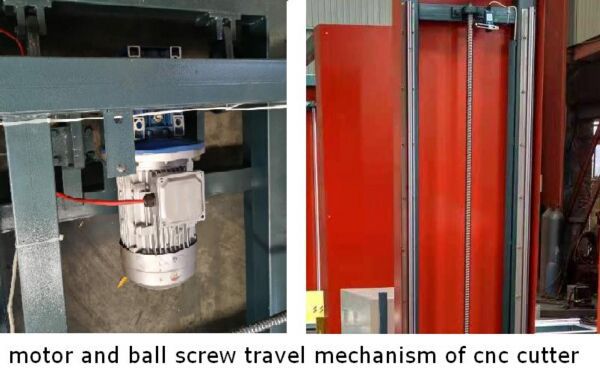

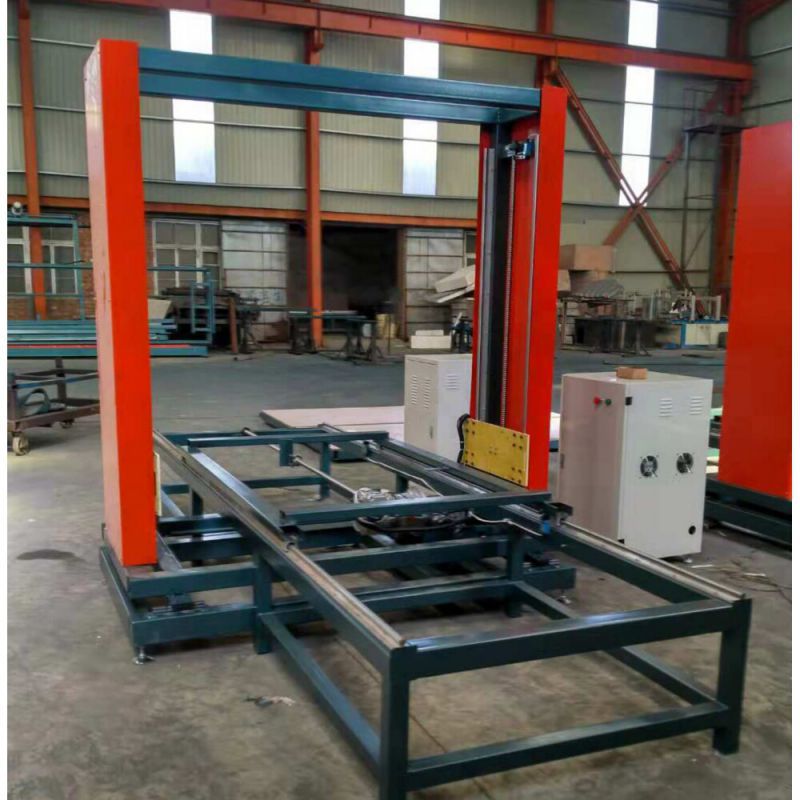

mechanism of cnc styrofoam cutting machine

Specification

     Model No.
Wire Oscillation
Cutting Length
(mm)
Wire Length
(mm)
Cutting Height
(mm)
Wire Qty
Wire Travel Distance(mm)
X axis
Y axis
CNCPSQ300
Yes
3000
1400
1350
24
1800
1300
CNCPSQ600
6000
1400
1350
24
1800
1300
CNCPSQ300
No
3000
1400
1350
24
1800
1300
2200
2600
CNCPSQ600
6000
1400
1350
24
1800
1300
2200
2600

Software

The DevCAD software will be pre-installed in the laptop and they will be shipped in the container.The DEVCAD software is international and it is easy to learn.You will get the laptop computer and software from us.

laptop and software

Foam cutting work on the CNC hot wire cutting machine uses Cr20Ni80 hot wire to cut through eps styrofoam materials.Wire quantity can be set according to the demand for bulk cutting work.The wire can be heated with electricity conduction on the hot wire cutter machine.Hot wire moves through the eps styrofoam material and melts it. Position of both wire ends is precisely controlled to allow the wire to follow the desired cutting path in the controlling software.

Application

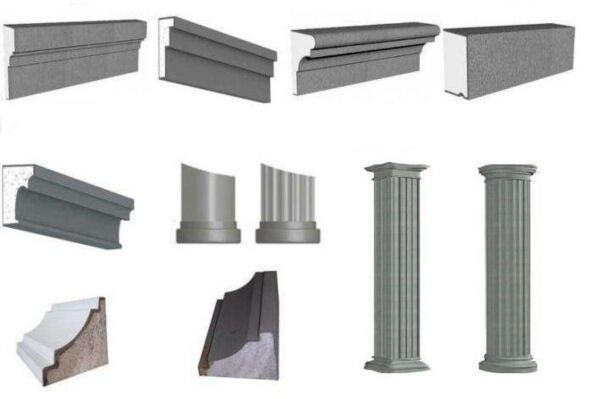

architectural foam models by cnc foam cutting machine

Youtube Video

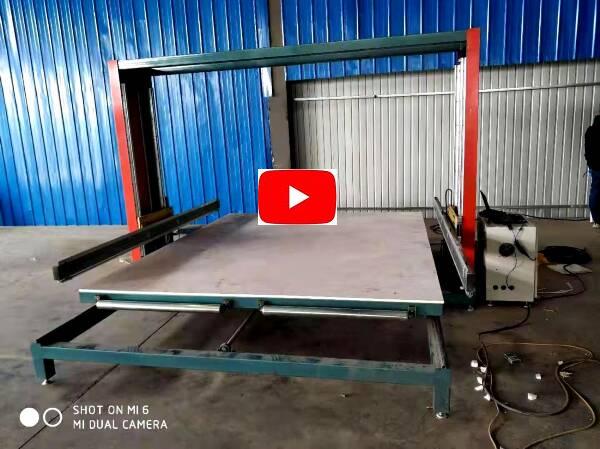

hot wire cnc foam cutter with multiwires

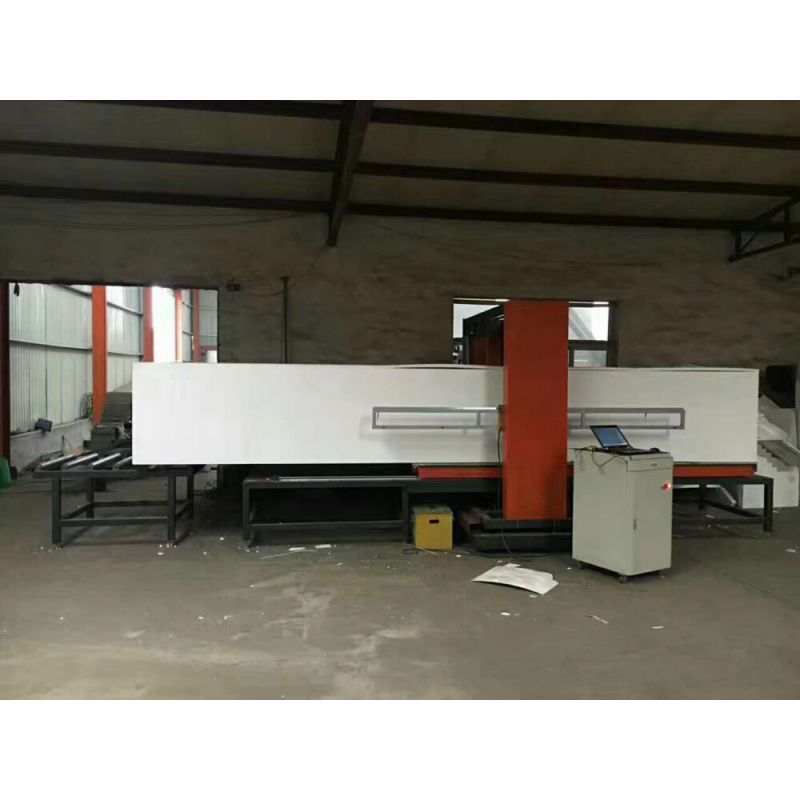

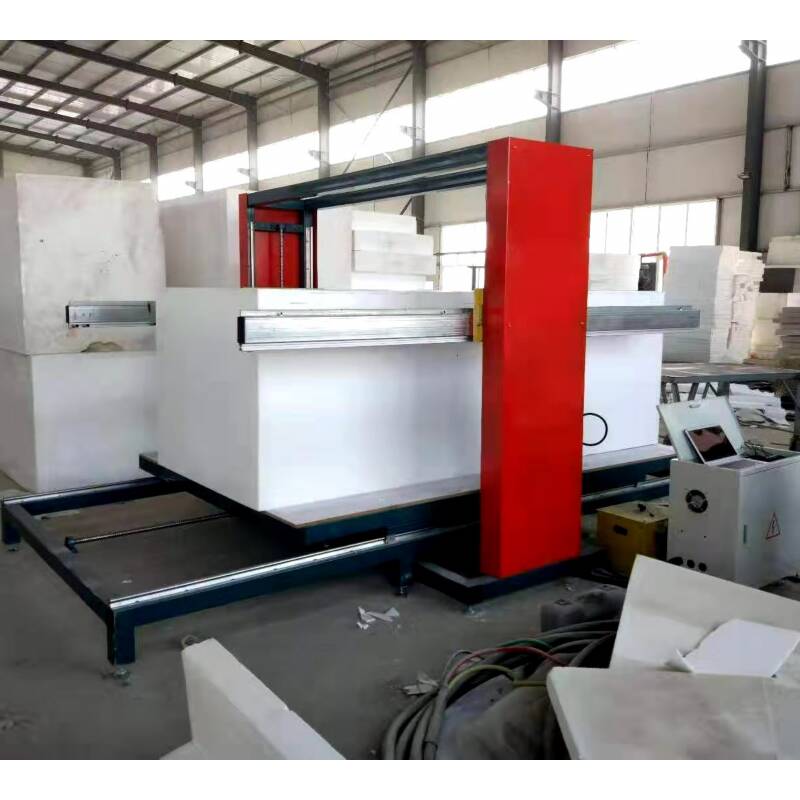

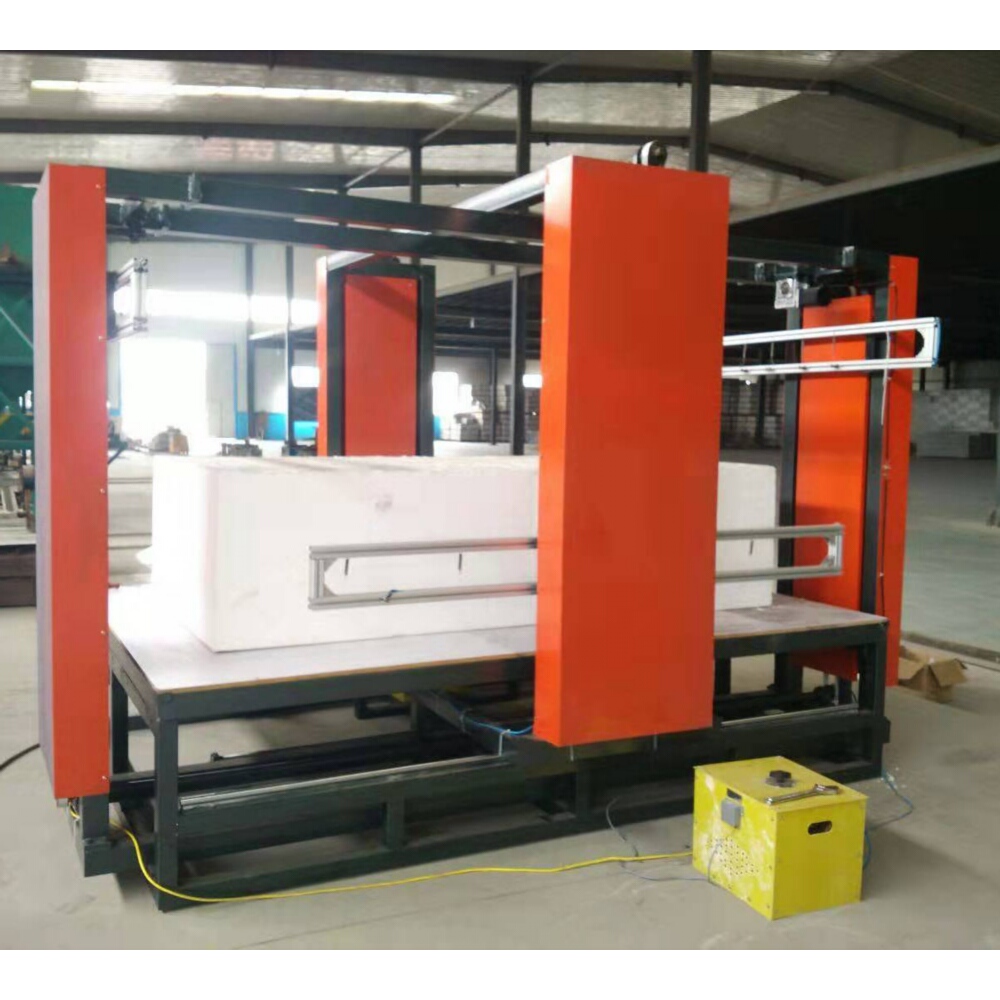

more Photo of heavy duty CNC hot wire cutter machine with oscillating wires for 2D models
